Intelligent crowd management flap turnstile
Perfect design, can provide you with various solutions
Model : JS-Y007
Intelligent crowd management flap turnstile
Perfect design, can provide you with various solutions
JS-Y007 Product Features

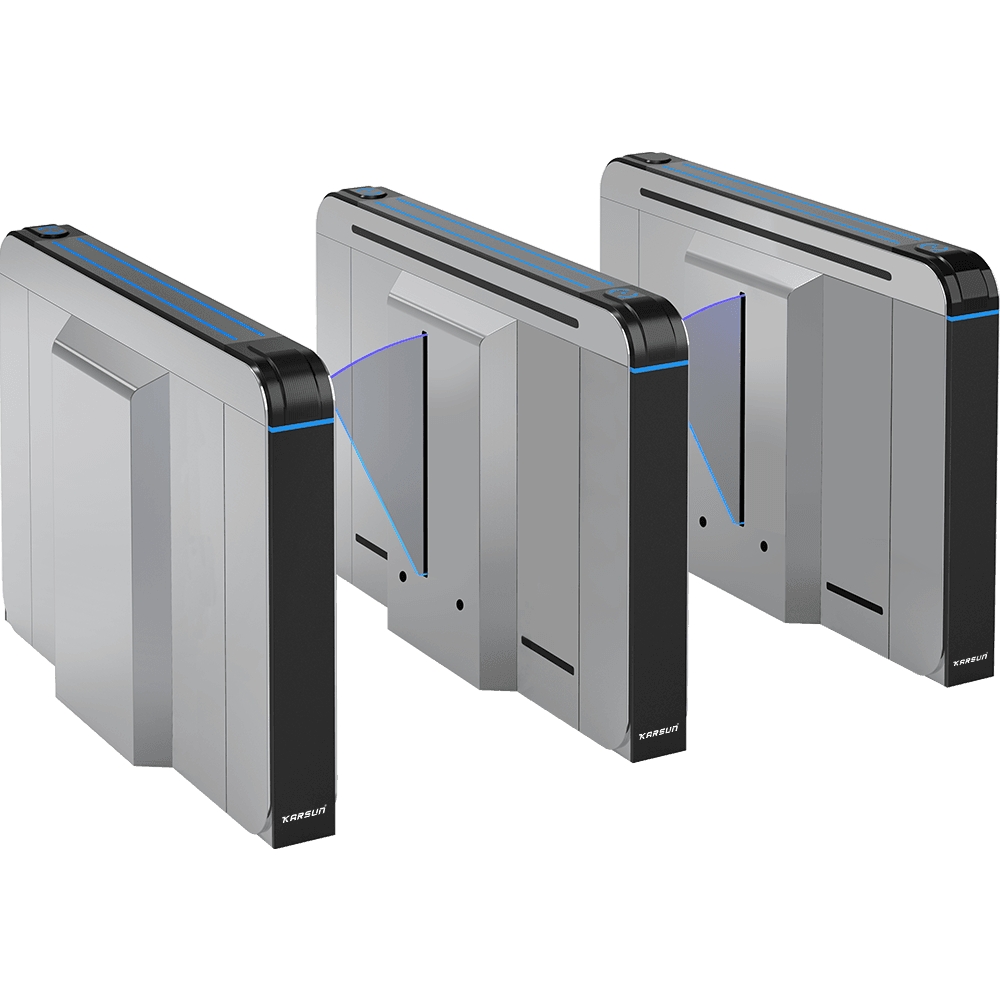

JS-Y007 Patent Series Flap Turnstiles are robust products functioning to provide pedestrian access control in areas requiring moderate level of security. With its compact case design, provides a perfect solution for tight installation areas. Encoder and PLC controlled obstacle movement is provided by Brushless Servo motor, and enhanced with security features such as anti-tail-gating and anti-pass-back,with five pairs of optical sensors embedded in the turnstile case, which in total ensures one of the highest reliability available in market and a remarkably long life even in case of intensive usages.
easy setup
Conguration of operation modes (e.g. NO – Normal Opened Mode, NC – Normal Closed Mode, Free Entry Mode) and function is easy with the use of a control panel with a display and an encoder.
LED pictograms
Led pictograms show active/inactive trac directions in the passage. The red color shows the inactive/blocked trac direction (the device blocks the passage). The green color shows active/unblocked trac direction.
overload protection
All devices are equipped in an additional overload protection, which stops the wings movement if an obstacle is detected and a sound signalling is set off.
emergency exit
sensor system
A processor system software analyses signals from the system of sensors what allows to detect, with high accuracy, cases such as a passage attempt of two people on a single authorisation or a passage of a person without authorisation.
sound signal
Sound signalling informs, among others, about occurence of an unusual situation (e.g. an attempt of two people trying to pass in the same or in opposite directions without an authorisation), or about detecting an unauthorised object within the movement detection area.
easy setup
Conguration of operation modes (e.g. NO – Normal Opened Mode, NC – Normal Closed Mode, Free Entry Mode) and function is easy with the use of a control panel with a display and an encoder.
LED pictograms
Led pictograms show active/inactive trac directions in the passage. The red color shows the inactive/blocked trac direction (the device blocks the passage). The green color shows active/unblocked trac direction.
overload protection
All devices are equipped in an additional overload protection, which stops the wings movement if an obstacle is detected and a sound signalling is set off.
emergency exit
In case of a voltage decay, the device remains in an unlocked position.
sensor system
A processor system software analyses signals from the system of sensors what allows to detect, with high accuracy, cases such as a passage attempt of two people on a single authorisation or a passage of a person without authorisation.
sound signal
Sound signalling informs, among others, about occurence of an unusual situation (e.g. an attempt of two people trying to pass in the same or in opposite directions without an authorisation), or about detecting an unauthorised object within the movement detection area.
Gate opening method
Open gate way function
easy setup
Access with authorized card and payment card sex piece swipe to open the way.
Fingerprint recognition
Access with authorized ngerprint authentication.
face recognition
Use authorized face recognition to enter.
manual operation
Manual use of wired and wireless to open gates for entry.
iris recognition
Use the authorized eyes of Iris recognition to pass through the entry gates.
palm vein recognition
Use authorized palm vein recognition to pass into.
coin toss
Use disposable coins to coin through to enter.
QR code
Scan in with authorization QR code and barcode.
Solutions
Please select the solution you want
Business
High-speed pass-through for employees and visitors, unauthorized access prevention, and other commercial solutions.
Government
The entrances to government institutions are equipped with blocking devices that allow incoming visitors to pass only when they present their cards.
Campus
Access to the University's territory is provided by means of the campus card. In order to pass through the turnstile, it is necessary to present the card to the reader.
Subway
Crowd control facilities for subway entrances and exits, such as card payment, coin, QR code and face payment, etc. These control crowd ticketing fees.
Crowd control
For use with crowd size limits and entrance time limits, etc.
Customized
We can provide customization services such as color, size, function and appearance.
Partners
Business cooperation, become our distribution partner and we can also act as your supplier to provide you with quality products and prices for your company.
Other issues
Please contact us and tell us your problem so that we can provide you with a better solution.
Product Parameters
Function conguration can be customized
Description
| Brand name | KARSUN |
| Motor type | Brushless Servo motor |
| Flow rate | 40-60people/minute |
| Passage width(mm) | ≤600 |
| Rated Power | 50W |
| Cabint material | SUS 304;1.5mm top lid/1.2mm side |
| Infared sensor | 8 pairs |
| Input/Output signal | dry contact/relay signal |
| Dimension | 1400*300*980mm |
| Net weight | 55KG |
| Gross weight | 57KG |
| IP | IP44 |
| Operating Temperature | -10 °C- 60 °C |
| Operating Humidity | 5%-85% |
| Working Environment | Indoor/Outdoor covered |
| Voice prompt | Yes |
| Brand name | KARSUN |
| Motor type | Brushless Servo motor |
| Flow rate | 40-60people/minute |
| Passage width(mm) | ≤600 |
| Rated Power | 50W |
| Cabint material | SUS 304;1.5mm top lid/1.2mm side |
| Infared sensor | 8 pairs |
| Input/Output signal | dry contact/relay signal |
| Dimension | 1400*300*980mm |
| Net weight | 55KG |
| Gross weight | 57KG |
| IP | IP44 |
| Operating Temperature | -10 °C- 60 °C |
| Operating Humidity | 5%-85% |
| Working Environment | Indoor/Outdoor covered |
| Voice prompt | Yes |
